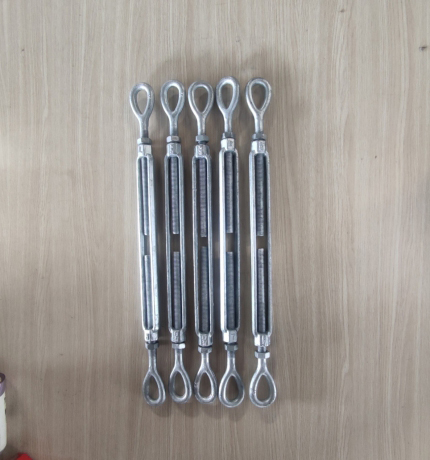

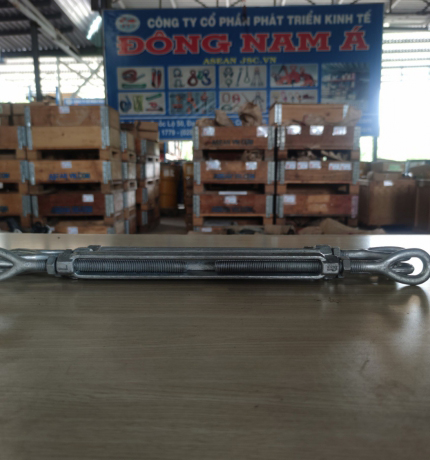

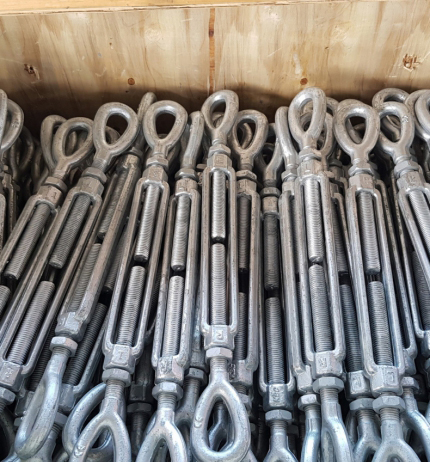

Tăng đơ 2 đầu mắt, Mã KP-2040 KBC - Korea www.capcau.net www.Kyungbu.com
| Thread | S.W.L (T) |
Dimensions (mm) | Weight Each (kg) |
||||||||
| Diameter& | |||||||||||
| Take up (in) | A | J | K | M | N | R | S | X | BB | ||
| OPen | Closed | Open | Closed | Closed | |||||||
| 3/8x6 | 0.5 | 10 | 437 | 287 | 454 | 304 | 28 | 13 | 63 | 150 | 0,34 |
| 1/2x6 | 1 | 13 | 502 | 327 | 524 | 349 | 36 | 18 | 81 | 150 | 0,73 |
| 1/2x9 | 1 | 13 | 628 | 402 | 650 | 424 | 36 | 18 | 81 | 225 | 0,83 |
| 1/2x12 | 1 | 13 | 802 | 477 | 824 | 499 | 36 | 18 | 81 | 300 | 0,94 |
| 5/8x6 | 1.6 | 16 | 548 | 367 | 573 | 392 | 44 | 22 | 98 | 150 | 1,25 |
| 5/8x9 | 1.6 | 16 | 668 | 442 | 693 | 468 | 44 | 22 | 98 | 225 | 1,42 |
| 5/8x12 | 1.6 | 16 | 848 | 517 | 873 | 542 | 44 | 22 | 98 | 300 | 1,59 |
| 3/4x6 | 2.36 | 19 | 597 | 410 | 628 | 441 | 52 | 25 | 117 | 150 | 1,77 |
| 3/4x9 | 2.36 | 19 | 710 | 485 | 741 | 516 | 52 | 25 | 117 | 225 | 2,09 |
| 3/4x12 | 2.36 | 19 | 897 | 560 | 928 | 591 | 52 | 25 | 117 | 300 | 2,70 |
| 3/4x18 | 2.36 | 19 | 1.197 | 710 | 1.228 | 741 | 52 | 25 | 117 | 450 | 3,29 |
| 7/8x12 | 3.3 | 22 | 927 | 583 | 964 | 621 | 60 | 31 | 128 | 300 | 3,68 |
| 7/8x18 | 3.3 | 22 | 1.227 | 733 | 1.264 | 771 | 60 | 31 | 128 | 450 | 4,52 |
| 1x6 | 4.5 | 25 | 749 | 499 | 743 | 543 | 75 | 36 | 159 | 150 | 4,24 |
| 1x12 | 4.5 | 25 | 999 | 649 | 1.049 | 693 | 75 | 36 | 159 | 300 | 5,42 |
| 1x18 | 4.5 | 25 | 1.299 | 799 | 1.343 | 843 | 75 | 36 | 159 | 450 | 6,36 |
| 1x24 | 4.5 | 25 | 1.599 | 949 | 1.643 | 993 | 75 | 36 | 159 | 600 | 7,83 |
| 1-1/4x12 | 6.9 | 31 | 1.070 | 708 | 1.127 | 764 | 89 | 45 | 193 | 300 | 8,63 |
| 1-1/4x18 | 6.9 | 31 | 1.370 | 858 | 1.427 | 914 | 89 | 45 | 193 | 450 | 10,44 |
| 1-1/4x24 | 6.9 | 31 | 1.670 | 1.008 | 1.727 | 1.064 | 64 | 45 | 193 | 600 | 12,26 |
| 1-1/2x12 | 9.73 | 38 | 1.138 | 763 | 1.200 | 825 | 102 | 53 | 216 | 300 | 12,49 |
| 1-1/2x18 | 9.73 | 38 | 1.438 | 913 | 1.500 | 975 | 102 | 53 | 216 | 450 | 14,07 |
| 1-1/2x24 | 9.73 | 38 | 1.738 | 1.063 | 1.800 | 1.125 | 102 | 53 | 216 | 600 | 17,03 |
| 1-3/4x18 | 12.7 | 44 | 1.435 | 985 | 1.510 | 1.060 | 116 | 60 | 250 | 450 | 23,84 |
| 1-3/4x24 | 12.7 | 44 | 1.735 | 1.135 | 1.810 | 1.210 | 116 | 60 | 250 | 600 | 26,33 |
| 2x24 | 16.8 | 50 | 1.891 | 1.292 | 1.980 | 1.380 | 144 | 67 | 327 | 600 | 38,70 |
| 2-1/2x24 | 27.3 | 63 | 1.966 | 1.366 | 2.066 | 1.466 | 163 | 78 | 345 | 600 | 65,49 |
| 2-3/4x24 | 34 | 69 | 2.025 | 1.425 | 2.138 | 1.538 | 175 | 81 | 381 | 600 | 88,08 |
|
Thread Diameter& Take up (in) |
S.W.L (T)
|
Dimensions (in) |
Weight Each (kg) |
||||||||
|
A |
J OPen |
K Closed |
M Open |
N Closed |
R
|
S |
X Closed |
BB |
|||
|
3/8x6 |
0.5 |
0.38 |
17.47 |
11.47 |
18.16 |
12.16 |
1.12 |
0.53 |
2.52 |
6 |
0.34 |
|
1/2x6 |
1 |
0.5 |
20.08 |
13.08 |
20.96 |
13.96 |
1.44 |
0.72 |
3.23 |
6 |
0.73 |
|
1/2x9 |
1 |
0.5 |
25.1 |
16.09 |
25.98 |
16.97 |
1.44 |
0.72 |
3.23 |
9 |
0.83 |
|
1/2x12 |
1 |
0.5 |
32.08 |
19.08 |
32.96 |
19.96 |
1.44 |
0.72 |
3.23 |
12 |
0.94 |
|
5/8x6 |
1.6 |
0.63 |
21.93 |
14.68 |
22.93 |
15.68 |
1.75 |
0.88 |
3.9 |
6 |
1.25 |
|
5/8x9 |
1.6 |
0.63 |
26.7 |
17.69 |
27.7 |
18.7 |
1.75 |
0.88 |
3.9 |
9 |
1.42 |
|
5/8x12 |
1.6 |
0.63 |
33.93 |
20.68 |
34.93 |
21.68 |
1.75 |
0.88 |
3.9 |
12 |
1.59 |
|
3/4x6 |
2.36 |
0.75 |
23.88 |
16.38 |
25.12 |
17.62 |
2.09 |
1 |
4.69 |
6 |
1.77 |
|
3/4x9 |
2.36 |
0.75 |
28.4 |
19.4 |
29.64 |
20.63 |
2.09 |
1 |
4.69 |
9 |
2.09 |
|
3/4x12 |
2.36 |
0.75 |
35.88 |
22.38 |
37.12 |
23.62 |
2.09 |
1 |
4.69 |
12 |
2.47 |
|
3/4x18 |
2.36 |
0.75 |
47.88 |
28.38 |
49.12 |
29.62 |
2.09 |
1 |
4.69 |
18 |
3.29 |
|
7/8x12 |
3.3 |
0.88 |
37.07 |
23.32 |
38.57 |
24.82 |
2.38 |
1.25 |
5.1 |
12 |
3.68 |
|
7/8x18 |
3.3 |
0.88 |
49.07 |
29.32 |
50.57 |
30.82 |
2.38 |
1.25 |
5.1 |
18 |
4.52 |
|
1x6 |
4.5 |
1 |
29.97 |
19.97 |
29.72 |
21.72 |
3 |
1.44 |
&a
